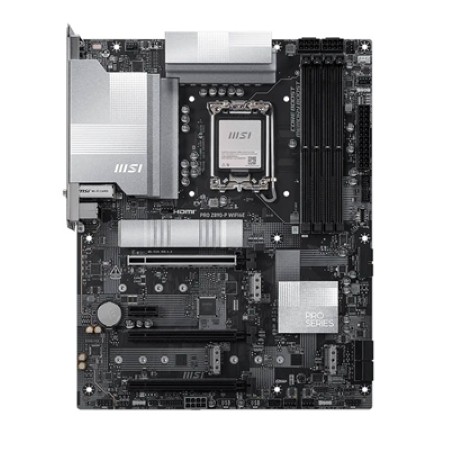

MSI
PRO Z890-S WIFI6E
ATX
244 Mm X 305 Mm
LGA 1851
Intel Z890
Intel Core Ultra Serie 2 (Arrow Lake)
DDR5
4
256 GB
6400 MT/S
8600 MT/S
Dual-Channel
4 X PCIe X16 (1 X Gen5 X16, 2 X Gen4 X4, 1 X Gen3 X1)
3 X M.2 (1 X Gen5 PCIe, 2 X Gen4 PCIe)
4 X SATA III (6 Gb/S)
0, 1, 5, 10
Wi-Fi 6E (Intel)
5.4
2.5 Gigabit LAN
Realtek 8125D (2.5 GbE)
6 X USB 3.2 Gen1, 1 X USB 3.2 Gen2x2 (20 Gbps), 4 X USB 2.0
4 X USB 3.2 Gen1, 4 X USB 2.0
1 X HDMI, 1 X DisplayPort
3 X Audio Connector (Line-Out, Line-In, Microfono)
Realtek ALC897 (7.1 Canali)
1 X 24-Pin ATX, 2 X 8-Pin ATX 12V
6 X Connettori Ventola A 4-Pin (CPU E Case)
1 X RGB LED, 3 X Addressable RGB LEDs
Windows 10, Windows 11
Pannello I/O, 2 X Cavi SATA, Antenna Wi-Fi, Clips M.2, Cavo Connessione Rapida
