| Product Name |

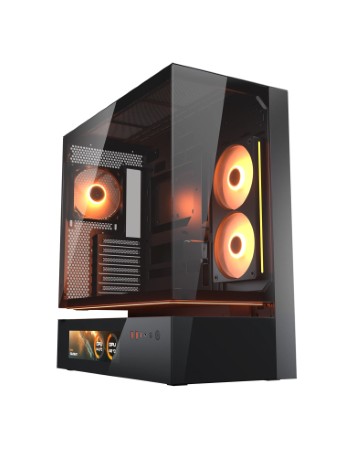

CFV235 Vision / CFV235 Vision (White) |
| Case Form Factor |
Mid Tower |
| Motherboard Type |
Mini ITX / Micro ATX / ATX / CEB |
| Dimensions (WxHxD) |
235 x 493 x 460 (mm)
9.3 x 19.4 x 18.1 (in) |
| 9.16" LCD Monitor (1920 x 462 px) |
Yes |
| I/O Panel |
USB 3.2 Gen 2x2 Type-C x 1, USB 3.0 Type-A x 2, 4 Pole Headset Audio Jack x 1, RGB Button |
| 3.5" Drive Bay |
2 |
| 2.5" Drive Bay |
2+2 (converted from 3.5" drive bays) |
| Expansion Slots |
7 |
| Cooling Fan Support |
Top |
120mm x 3 / 140mm x 3 |
| M/B Side |
120mm x 2 |
| Bottom |
120mm x 3 |
| Rear |
120mm x 1 |
| Pre-installed Fans |
M/B Side |
Unity 240 ARGB PWM Reversed fan x 1 |
| Rear |
120mm ARGB PWM fan x 1 |
| Speed |
Unity 240 ARGB PWM Reversed fan: 700-1600 RPM ±10%
120mm ARGB PWM fan: 500-1400 ± 10% RPM |
| Connector |
5V 3 Pin (ARGB) / 4 Pin PWM (Fan) |
| Maximun Number of Fans |
9 |
| Water Cooling Support |
Top |
360mm / 280mm / 240mm / 140mm / 120mm |
| Rear |
120mm |
| Aurora LED Strip |
Yes |
| PWM and RGB hub Sync with M/B |
Yes |
| Max. Graphics Card Length |
430 (mm) / 16.9 (in) |
| Max. CPU Cooler Height |
175 (mm) / 6.9 (in) |
| Max. PSU Length |
200 (mm) / 7.9 (in) |
