Dettagli prodotto

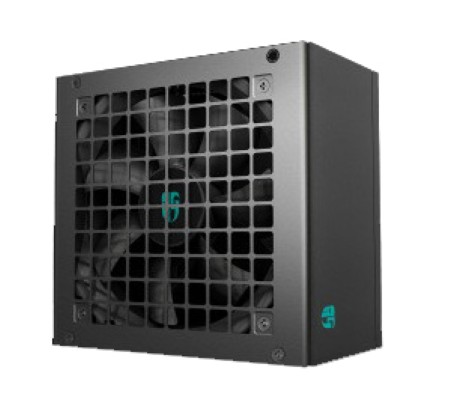

PF-500X 500W
Per soddisfare lo standard Intel ATX 2.52, utilizza Active PFC + Double Forward + DC to DC, combinato con un circuito EMI a doppio stadio. Riduce in modo significativo il rumore di ripple e la deviazione di tensione, garantendo migliori prestazioni elettriche e compatibilità.
https://www.gamerstorm.com/product/PowerSupply/2025-03/2595_15325.shtml
Specifiche
| Model |
PF500X |
| Model No |
PF500X-HD |
| Total Output |
500W |
| Type |
ATX12V V2.52 |
| Product Dimensions |
150×140×86mm (W x L x H) |
| Efficiency certification |
80PLUS 230 EU Bronze/CYBENETICS Bronze /CYBENETICS A 230V/PPLP 230V Bronze |
| Fan Size |
120mm |
| Fan Bearing |
Longlife HYB |
| Topology |
Active PFC+DC to DC |
| Capacitors |
Taiwanese + Japanese Electrolytic Capacitors |
| Power Good Signal |
100-150ms |
| Hold Up Time |
≥16ms(75% Load) |
| Efficiency |
≥88% Under Typical Load(50% Loading) |
| Protection |
OPP/OVP/OCP/SCP/OTP/UVP/SIP/NLO |
| Operation Temperature |
0-40°C |
| Regulatory |
CE/TUV-RH/CCC/RCM/KC |
| Erp Regulation |
ErP 2014 |
| Environment Protection |
WEEE/中国 RoHS/Triman |
| MTBF |
40,000 Hours |
